Descripción

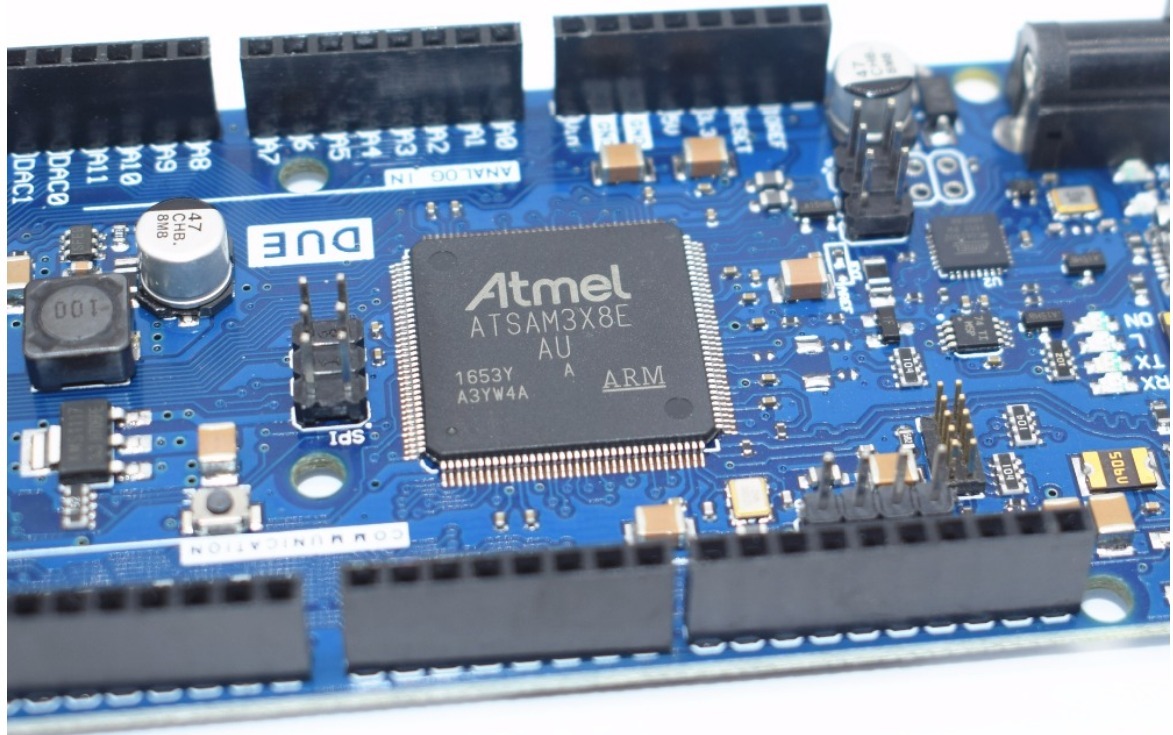

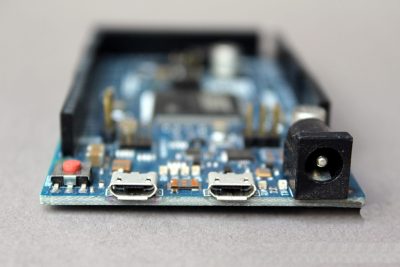

Es una board basada en el microcontrolador Atmel SAM3X8E con un procesador Cortex-M3 ARM de 32 bits, posee las mismas dimensiones que la board Arduino MEGA (predecesora), una gran característica, puesto que permite la conexión de board Shield que usa esta, siempre y cuando exista compatibilidad, en lo que respecta al pinout de Arduino v1.0 y en especial por los niveles de tensión de funcionamiento, ya que este modelo opera a 3.3V. El voltaje de operación de esta board permite el uso de baterías de polímero de litio (LiPo) de 3.7V. Cuenta con dos puertos USB, uno para programación y otro que puede actuar como USB Host, como para trabajar con Android. Respecto a la velocidad de conexión serial, ha pasado de 115kbps a 1000kbps lo cual incrementa enormemente la velocidad de conexión cuando se capturan datos por puerto serial.
Microcontrolador AT91SAM3X8E
Voltaje de operación 3.3V
Voltaje de entrada (recomendado) 7V~12V
Voltaje de entrada (límite) 6V~16V
Corriente de salida total líneas de entradas/salidas 130mA
Corriente pin 3.3V/5V 800mA
Pines digitales entradas/salidas 54 (12 pines para señal PWM a la salida)
Pines analógicos de entrada 12
Pines analógicos de salida 2 (DAC)
UART 4 (hardware para puertos seriales)
Cabecera
¬ SPI
¬ JTAG
Memoria Flash 512KB
SRAM 96KB (dos bancos: 64KB y 32KB)
Frecuencia de reloj 84MHz
