Descripción

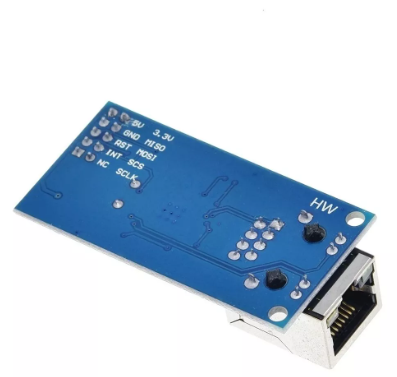

La tarjeta incluye todo lo necesario para realizar la interfaz con una red ethernet, incluido el conector ethernet con transformadores de aislamiento. Solamente hace falta conectarla a los pines SPI del microcontrolador y a la alimentación.
Esta tarjeta se puede utilizar con un microcontrolador PIC que sea capaz de ejecutar el Stack TCP/IP de Microchip o con tarjetas Arduino. La implementación de TCP/IP debe llevarse a cabo en el microcontrolador, ya que el ENC28J60 no tiene stack TCP/IP por hardware. Por esta razón se recomienda un microcontrolador Host con suficiente memoria.
Especificaciones
Basado en el controlador Ethernet ENC28J60 de Microchip.
Se puede usar fácilmente con Arduino, AVR, PIC, MSP430, etc.
Compatible con microcontroladores de 3.3 (también se puede comunicar con CPUs de 5 volts, con traductores de niveles).
Interfaz Ethernet 802.3 10 Mbps Half o Full Duplex (Manual).
Interfaz con el microcontrolador host por SPI.
Soportado por el Stack TCP/IP de Microchip Technology.

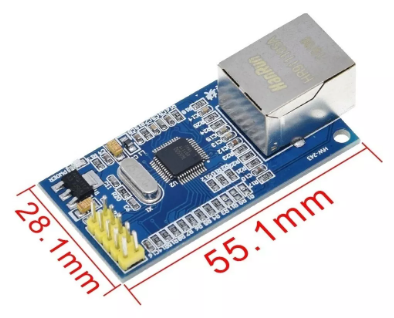

Cristal de 25 Mhz, Conector Ethernet y todo el hardware de soporte incluido
Voltaje de Operación: 3.3V – 5V
Conector RJ45 HR911105A con transformadores de aislación incorporados
LED de Encendido
Aplicaciones
Servidores web embebidos
Control de iluminación
Convertidores de protocolos
Domótica y automatización
Proyectos Escolares
